POESOL

POE ENCAPSULANT FILM

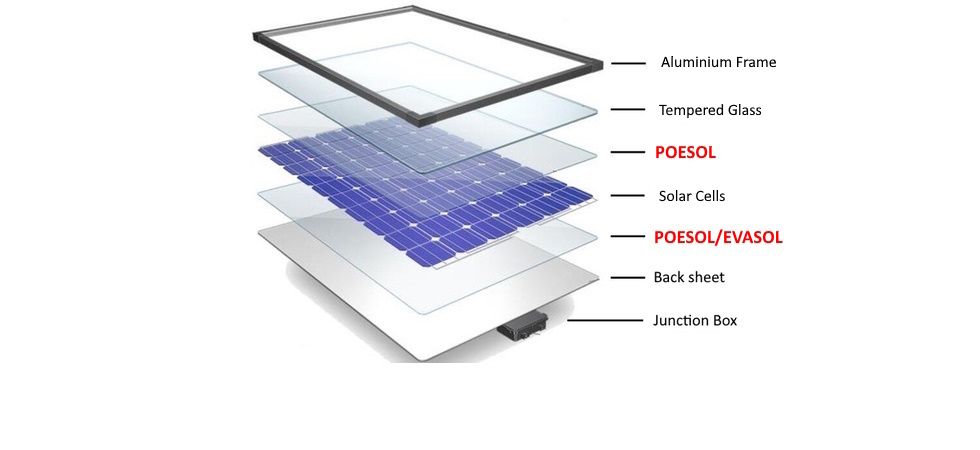

Although solar panels appear to be a simple structure from the outside, they are a combination of high-tech products. Every component used in the panels must be durable and of high quality.

One of these components is POE (Polyolefin Elastomer) encapsulant films. It provides higher transmission of UV and sunlight to increase power output in solar panels. It protects the panels from moisture, water, dirt and external factors while keeping the entire structure of the panel together. It has a fast-setting, thermosetting structure designed for high-efficiency solar cells in PV modules..

PRODUCT FEATURES AND TECHNICAL INFORMATION

Thickness: 0,4 – 0,6 mm

Width and Lenght: Width maximum 1300 mm / Lenght 100 – 600 m

• High adhesion ability to glass and backsheet
• Very low shrinkage rate
• High light transmittance
• Excellent UV and moisture-heat stability
• High strength because there is no acetic acid
• Long shelf life

QUALITY AND TESTS

We carry out our tests with regularly calibrated devices in our advanced and well-equipped laboratory. We also have tests done in accredited laboratories.

The tests we carry out according to ASTM and ISO Standards;
• Crosslinking rate test
• Adhesion – peel test
• Water absorption test
• Shrinkage rate test
• Tensile strength and elongation tests
• Density Tesy
• Shore A hardness test

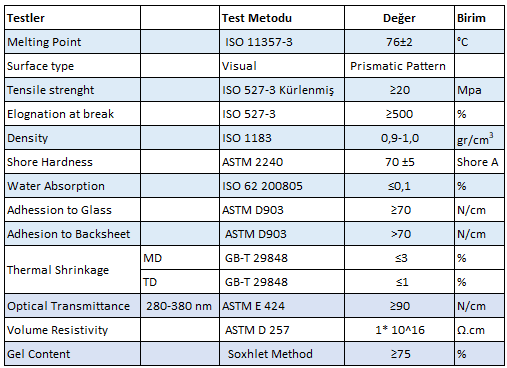

TECHNICAL DATA SHEET
